3-Phase Dust Extractors, Building Worker, Construction, Floor Finisher, Industry, Mobile Dust Extractors

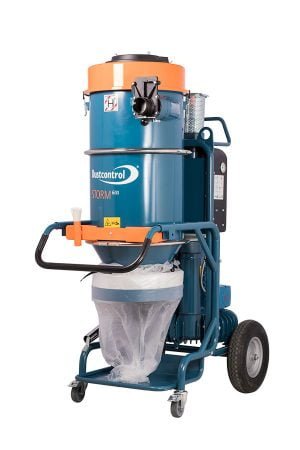

DC Storm 600 a

The DC Storm is a powerful and reliable mobile dust extractor. They are built on a robust and sturdy steel chassis for maximum durability, for example on construction sites. With a direct-driven, three-phase turbopump, the DC Storm is suitable for continuous operation, conveying heavy material away, source extarction and cleaning.

  • An efficient semi-automatic filter cleaning system
  • For easier transportation it has handles both front and rear and the cyclone can be tilted
  • For better ergonomic the handles are adjustable and the cyclone can be tilted for easier filter exchange
  • Equipped with  Intellibag (DC Storm 500c), container (DC Storm 500a) or Longopac (DC Storm 500L
  • An efficient HEPA filter with a large filter area



3-phase 3-phase
H H
Get a request
  • Model Part no
    Request
  • DC Storm 600a 10hp 460V 60Hz
    119409
    Request
  • DC Storm 600a 10hp 220/380V 60Hz
    119437
    Request
  • DC Storm 600a 10hp 660V 60Hz CAN
    119410
    Request

The DC Storm is a powerful and reliable mobile dust extractor. They are built on a robust and sturdy steel chassis for maximum durability, for example on construction sites. With a direct-driven, three-phase turbopump, the DC Storm is suitable for continuous operation, conveying heavy material away, source extarction and cleaning.

The DC Storm provides sufficient air flow for several users at the same time and it can also be used as a semi-mobile central unit in a tubing system. It is suitable for source extraction for grinding discs up tp approx. 800 mm/ 31″ in diameter.

Three basic models are available: bag (c), container (a) and longopac (L), each powered by a 10hp motor.

The DC Storm 600a is delivered as standard with the following:

  • Coupling socket (2107)
  • Coupling socket (2008)
  • Suction hose antistatic (Ø50 mm /2”) 7.5 m/ 22 ft (2013)
  • Floor nozzle B500 mm /W 19.7” (7238)
  • Suction pipe (Ø50 mm /2”) (7265)
  • Container 75 l /20 US gal (7368)
  • Fine filter, polyester (44212)
  • HEPA H13 filter (42807)
(US only) HxWxD [in]

70x31x46

(US only) Weight [lb]

447

(US only) Inlet Ø [in]

3

(US only) Hose length Ø50mm/2'' [m/ft]

7.5/22

(US only) Collecting container [l/gal]

75/19.8

(US only) Max. flow fan (US/CAN) 115V [CFM/m3/h]

353/600

(US only) Negative pressure max. (US/CAN) [inwg/kPa]

24/96

(US only) Power (US/CAN) [Hp/kW]

10/7.5

(US only) Fine filter polyester, area [ft2]

54

Degree of separation fine filter, EN 60335-2-69, Class M [%]

99.9

(US only) HEPA filter, area [ft2]

29

Filter classification HEPA filter, EN 1822-1

HEPA H13

Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%]

99.995

Max. sound level [dB(A)]

75
